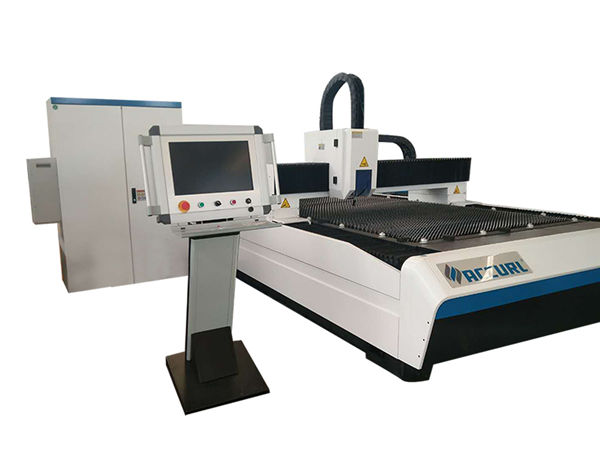

full enclosed industrial laser cutting machine 10m / min cutting speed

Product Product

Sertifikasi: ISO9001: 2008

Pembayaran & Kirim Katentuan:

Ukuran Dhuwit Minimal: 1

Rega: rembugan

Detail kemasan: Kasus kayu

Wektu Pangiriman: 7-15 dina

Kemampuan Penyetor: 1 unit / wulan

Katrangan Product Detailed

Jeneng Produk:	Metal Sheet Fiber Laser Cutting Machine	Daya Laser:	1000w 1500w
Gelombang Laser:	1080nm	Area Makarya:	3000 * 1500mm
Nglereni kekandelan:	0-16MM (gumantung saka Laser Power)	Daya Sumber:	380v
Waranti:	1 Taun

Desciption Produk

1. Desain mesin terintegrasi: laci ngempel kiwa lan tengen ing sisih kiwa lan tengen mesin, ruang banget.
2. Kestabilitas lan keandalan sistem jalur cahya lan sistem kontrol.
3. Serat laser nduweni fungsi lan umur dawa lan stabil sing umure luwih saka 100000 jam.
4. Kualitas pemotong sing luwih dhuwur lan efisiensi kanthi nglereni kacepetan nganti 25m / menit kanthi pinggiran nglereni sing sampurna.
5. Reducer kinerja dhuwur, gear lan rak; Pandhuan Jepang lan skol bal.

Metal Sheet Fiber Laser Cutting Machine Advantages

1. low usage cost ,only 0.5-1.5km/h power consumption ,can use air to cut thin metal board.
2. High cutting speed , high effeciency,when cutting thin metal board. The speed can arrive 10m/min.
3. High quality of facula,samll deformation ,smooth and beautiful cutting surface.
4. Using import servomotor and Taiwan ball screw and guide rail ,high cutting precision.
5. Using special software to design all kinds of words or figures,then cutting immediately,flexible working and simple operating.
6. High stability,inport the best laser optical maser,steady performance ,that is the most important parts of Fiber cutter.The lifetime of Laser optical maser is 100,000 hours and free maintenance.
7. Low maintenance cost,no need working with air for the laser optical maser,fiber transmission ,no need reflector mirror , can save plenty of maintenance cost.
8. Simple and convenient operating,fiber transmission,no need adjust the light path.

Metal Sheet Fiber Laser Cutting Machine Advantages

Spesifikasi Teknis

^{Gelombang laser}	^1080nm
^{Ngethok kekandelan}	^0,2-16mm
^{Daya output laser}	^1000W
^{Kisaran pangolahan maksimal}	^{3000 * 1500mm}
^{Mode drive mesin}	^{gear diimpor lan drive pinon}
^{Y X. sumbu posisi akurasi}	^{± 0,01mm}
^{XY sumbu baleni posisi akurasi}	^{± 0,01mm}
^{Mode sumber daya}	^{380V / 50Hz}
^{Kacepetan maksimal nglereni}	^{45m / min}
^{Ukuran ambane garis minimal}	^0,02mm
^{Mode sing adhem}	^{3P Banyu banyu}

Aksesoris

Worktable part: the machine adopts double platforms exchange automatically, saving time of loading and unloading materials. High cutting efficiency. Saving time and cost.
The table can carry up to 500KG. The worktable is surrounded by wanxiang ball bearings.
the side of the workbench is installed with the clamping device, which can firmly set the plate on the worktable, so that the plate will not move when the laser is cut.
Transmisi
Y axis adopt double drives.
Taiwan Hiwin guide rails and Germany rack and gear
high speed with stability when working
Motors and drives
The X, Y and Z axis are imported servo motors in Japan Yaskawa with high accuracy, high speed, high torque, large inertia and stable performance.
The high speed and speed of the machine are guaranteed
Drives 3kw. high cutting power and precision.
Laser Generator and Laser cutting head
All of our fiber laser cutter are installed with brand name laser generator------Maxphotonics.
Warranty 2 years. low-processing cost and environment-friendly.
Swiss Raytools laser cutting head or Chinese brand name WSX.
Both are high quality and good parameter stability.

Industri Aplikasi

Digunakake kanggo pangolahan logam lembaran, penerbangan, aeroangkasa, elektronik, peralatan listrik, akses subway, otomotif, mesin panganan, mesin tekstil, mesin rekayasa, bagean tliti, kapal, peralatan metalurgi, angkat, peralatan rumah tangga, hadiah, alat, dekorasi, iklan , pamrosesan eksternal, pangolahan, lan industri manufaktur pawon liyane.

Bahan Aplikasi

Utamane digunakake kanggo nglereni baja karbon, silikon baja, baja tahan karat, lembaran baja galvanis, lan pirang-pirang jinis bahan logam nglereni lan liya-liyane.
