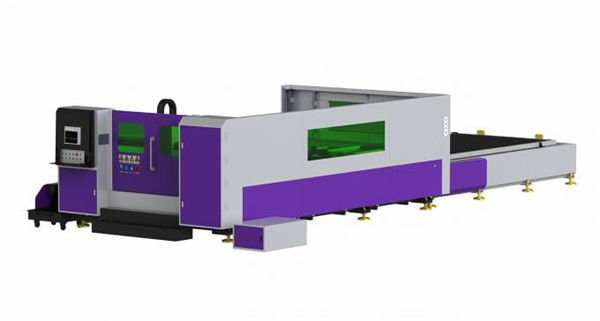

full enclosed cnc laser cutting machine , cnc laser metal cutting machine

mesin pemotong laser cnc lengkap, mesin pemotong logam laser cnc

Product Product

Sertifikasi: ISO9001: 2008

Pembayaran & Kirim Katentuan:

Ukuran Dhuwit Minimal: 1

Rega: rembugan

Detail kemasan: Kasus kayu

Wektu Pangiriman: 7-15 dina

Kemampuan Penyetor: 1 unit / wulan

Katrangan Product Detailed

Jeneng Produk:	Logam Lembar Logam	Daya Laser:	1000w 1500w
Gelombang Laser:	1080nm	Area Makarya:	3000 * 1500mm
Nglereni kekandelan:	0-16MM (gumantung saka Laser Power)	Daya Sumber:	380v
Waranti:	1 Taun

Desciption Produk

1. Desain mesin terintegrasi: laci ngempel kiwa lan tengen ing sisih kiwa lan tengen mesin, ruang banget.
2. Kestabilitas lan keandalan sistem jalur cahya lan sistem kontrol.
3. Serat laser nduweni fungsi lan umur dawa lan stabil sing umure luwih saka 100000 jam.
4. Kualitas pemotong sing luwih dhuwur lan efisiensi kanthi nglereni kacepetan nganti 25m / menit kanthi pinggiran nglereni sing sampurna.
5. Reducer kinerja dhuwur, gear lan rak; Pandhuan Jepang lan skol bal.

Main Features of Sheet Metal Laser Cutting Machine

1. The middle part of the two platforms are not in the same level, which can Save time for feeding and unloading material in short time.
2. Fully enclosed design can greatly reduce damage to the health from the laser, especially for those countries who strictly required to the environmental protection.
3. The exchange platform with heavy capacity can be placed 8-10 mm carbon steel plate. The table has universal balls. There is a sheet metal clamping device beside the table, which can firmly fix the materials on the table to avoide workpiece movement.
4. If it was powered off or the chain was pulled off , the platform can be pushed in by hand. At the same time it has anti-collision protection device on the left side of the machine to protect of the machine from damaging.
5. Working platform plate was made of a thickness of 3 mm carbon steel plate, the service life is long. it dosen’t need the replacement in 8 months to 1 year.
6. The overall steel beam is very steel, the machine beam used a 17 mm thickness plate, and beam base’s thickness is about 30 mm.
7. Dust cover is made of the fire-retardant materials.There will not be break and pull off with a long time use, at the same time it can prevent the spark burning.
8. Using the well-known brand of Taiwan helical rack, Taiwan's silver (HIWIN) 30 rail, good quality electronic devices, and Franch drive motor to ensure the accuracy of the machine work.
9. Faster Acceleration , repeated positioning accuracy is about 0.03mm,and its cutting accuracy can reach 7-8 silk.

^{Technical Specifications}

^Model	^RL-1530F
^{Gelombang laser}	^1080nm
^{Ngethok kekandelan}	^0,2-16mm
^{Daya output laser}	^1000W
^{Kisaran pangolahan maksimal}	^{3000 * 1500mm}
^{Mode drive mesin}	^{gear diimpor lan drive pinon}
^{Y X. sumbu posisi akurasi}	^{± 0,01mm}
^{XY sumbu baleni posisi akurasi}	^{± 0,01mm}
^{Mode sumber daya}	^{380V / 50Hz}
^{Kacepetan maksimal nglereni}	^{45m / min}
^{Ukuran ambane garis minimal}	^0,02mm
^{Mode sing adhem}	^{3P Banyu banyu}

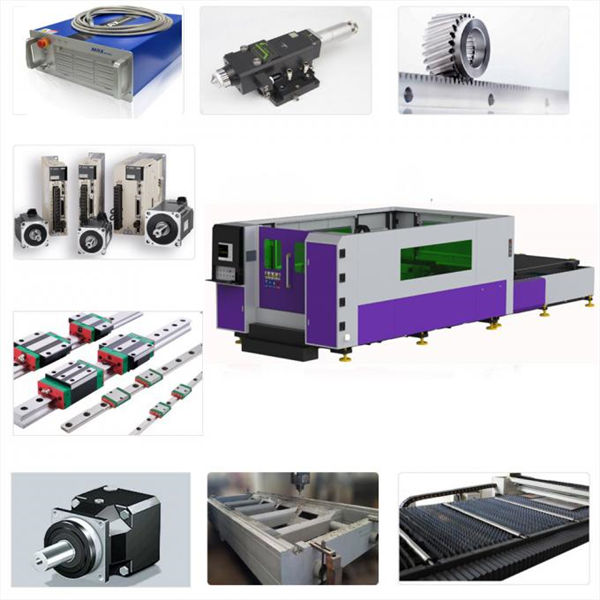

Rincian Mesin Pemotong Laser

Bahan sing wis digunakake

Utamane digunakake kanggo nglereni baja karbon, baja silikon, stainless steel, alloy aluminium, alloy titanium, sheet baja galvanis, papan pickling, piring seng aluminium, tembaga lan pirang-pirang jinis bahan logam nglereni lan liya-liyane.

Industri Terapan

Digunakake ing pangolahan logam lembar, penerbangan, ruang angkasa, elektronik, peralatan listrik, bagean subway, mobil, mesin, komponen presisi, kapal, peralatan metalurgi, lif, peralatan rumah tangga, hadiah lan kerajinan, pangolahan alat, adornment, iklan, pamrosesan manca logam macem-macem industri pangolahan industri.
