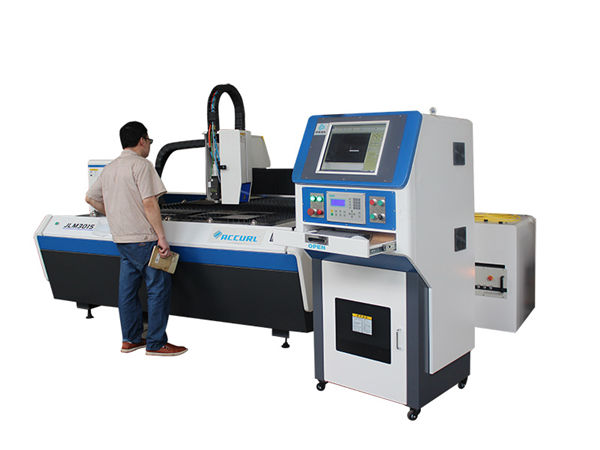

stainless steel presisi laser mesin pemotong kanthi tliti kanthi cepet

stainless steel presisi laser mesin pemotong kanthi tliti kanthi cepet

Product Product


Sertifikasi: ISO9001: 2008
Pembayaran & Kirim Katentuan:
Ukuran Dhuwit Minimal: 1 SET
Rega: rembugan
Detail Kemasan: Kasus Kayu
Delivery Time: 15- 30 Work Days
Supply Ability: 2000 units per month

Katrangan Product Detailed


Jeneng Produk:High Precision Fiber Laser Cutting Machine For With Small Cutting Area For Metal CuttingDaya Laser:500W/800W/1000W/2000W/3000W
Area Makarya:500 * 500mmKacepetan Pindhah maksimal:60m / mnt
Posisi Akurasi:± 0.01-0.03Powe Supply:3 × 380V ± 10% 220V ± 10%
Paket:Kasus KayuWaranti:1 Taun
Aplikasi:Bahan LogamPiranti Lunak:Cypcut
CNC Utawa Ora:YaKondisi:Anyar

Fiber laser Cutting Machine Features


♦ The double rack and pinion driving system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.
♦ Standard collocation of 500W fiber laser generator and optional 500W 750w, 1000W 2000W IPG or Maxphotonics or Nlight fiber laser generator ensures low operation and maintenance cost.
♦ Open structure is easy and convenient for material uploading and unloading.Drawer collecting device makes receiving materials more convenient.
♦ Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
♦ Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
♦ Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
Main Features of 500W High Precision Fiber Laser Cutting Machine:
BALL RAIL SYSTEM
Smooth & friction guided motion, high precision & high speed ball, long life & better load carrying capacity.

Ball screw mechanism
Precision movement imparted through ball screw mechanism. Supreme quality of ball screw to provide high accuracy and repeatability at high speed with low noise runner block.

User friendly software
User-friendly software for laser power and pulse frequency, pulse duration along with position control.

Nesting
Nesting software to nest different types of jobs in single sheet and optimal use of raw material. Accommodation of different types of jobs from scrap material & common edge cutting. Complete material management through user-friendly software.

Height sensing unit
Adjusting preset height automatically. It helps to cut little sloppy (non-flat or non-linear) surface of sheet. Non-contact & contact types of versions are available.

STRUCTURAL DESIGN
Structural design is such that it can withstand heavy loads. Vibration pads are used for sustaining the structural damping.

REMOTE CONTROL
Flexible machine controls from remote place with emergency stop facility, easy to understand or self-explanatory audio & video display machine.

SHEET LOADING & CLAMPING
Pneumatically actuated loader with ball on the top of it for easy sliding of the sheet. Pneumatically controlled firm clamping on the sheet. It can adjust the position of the clamp on the table. Safe loading and clamping for operator who is loading and un-loading the sheet.

DETACHABLE OPTICS
Replacements of mirror without any change in linked alignments.

THERMAL OPTICS STABILITY
Parallel water-cooling system with temperature control. It eliminates the thermal expansion of optics and increases peak power life.

OPTICS BELLOWS
Metallic bellows for protection of optics form contamination.

CONTROL & DISPLAY
SIEMENS or PC based SLT Ltd. controls available

Product Advantages


Generator Serat Laser
YAG Lampu Laser Generator Pump
Tube Laser CO2 RF
Kuwasa
500W/750W/1000W/2000W/3000W
500W/650W/850W
300W / 500W
Kaluwihan
Kualitas sinar laser sing apik, tliti nglereni sing dhuwur, kacepetan pemotongan sing dhuwur, tingkat konversi fotoelektrik sing efisien, biaya panggunaan lan perawatan sing sithik, operasi gampang lan pangopènan sing trep
Dibandhingake karo generator laser serat lan tabung laser logam CO2 RF saka daya sing padha, nduweni rega luwih murah, kemampuan nglereni materi sing luwih tebal, kolom aplikasi luwih akeh lan murah investasi siji-wektu.
Bisa ngethok lembaran logam lan bahan non-logam. Bahan bahan sing luwih wiyar. Daya output sing bisa diatur. Pangopènan gratis. Gampang operate lan gampang digunakake.
Bahan sing ditrapake
Kabeh jinis lembaran logam lan pipa
Kabeh jinis lembaran logam lan pipa
All kinds of metal sheets and other nonmetal materials
Industri ditrapake
Logam lembar, hardware, jam tangan, karya seni seni logam, lsp.
Logam lembar, piranti dapur, serat logam lan aksesoris & hardware, lsp
Sheet metal, advertising, furniture and

Parameter Teknis


Ukuran kerja500×500(mm)
Max. Nyepetake1.2g






X AXIS

Max. Kacepetan pindah60m / mnt
Rute500mm
Posisi akurasi± 0,01mm
Akurasi baleni±0.004mm






Y AXIS

Max. Kacepetan pindah60m / mnt
Rute500mm
Posisi akurasi± 0,01mm
Akurasi baleni±0.004mm
Z AXISRute100mm

Kahanan kerja


1Suhu kerja-10 ℃ ~ 45 ℃
2Kelembapan Relativede< 90% ora kondensasi
3LingkunganVentilasi sing apik, ora getaran
4Pasokan tenaga3 × 380V ± 10% 220V ± 10%
5Frekuensi daya50Hz

Application of Precision Fiber Laser Cutting Machine


1. Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

2. Application Industries: Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
