60m / min precision fiber laser cutting machine for advertising industry

Product Product

Sertifikasi: ISO9001: 2008

Pembayaran & Kirim Katentuan:

Minimum Order Quantity: 1 unit

Rega: rembugan

Detail Kemasan: Kasus Kayu

Wektu Pangiriman: 7-15 dina

Supply Ability: 2000 units per month

Katrangan Product Detailed

Jeneng Produk:	Precious Fiber Laser Cutter From 300W To 800W For Advertising Industry 5050	Daya Laser:	300w To 800w
Area Makarya:	500 * 500mm	Kacepetan Pindhah maksimal:	60m / mnt
Posisi Akurasi:	± 0.01-0.03	Powe Supply:	3 × 380V ± 10% 220V ± 10%
Paket:	Kasus Kayu	Waranti:	1 Taun

Precious metal precision laser cutting machine adopts Herolaser original double precious metal recycle system. Imported fiber laser source, high-profile cutting head, high precision rotary servo motors, with professional laser cutting control software and automatic following focalizing system, it can fully automatic adjust the focus position following the heights of bent cutting work piece to ensure the cutting quality.
Automatic feeding system and bangle,rings rotary cutting system can be optional.

Model Features

Original recycle system- full sealed double protection, cavity inner cut, recycle rate is up to 99.95%
High cutting precision, speed fast, narrow cutting seam, little heat-affected area, cutting surface smooth, no burrs.
10 years service life of fiber laser source.

Configuration

^#	^Item	^Spesifikasi	^Merek	^Tetembungane
¹	^{Sumber Laser}	^800W	^Maxphotonics
²	^{linear motor}		^Raytools
³	^{Optical grating}	^{resolution 0.5μm}	^Spain
⁴	^Driver		^servotronix
⁵	^{Z axis Screw module group}		^Empower
⁶	^{Laser nglereni sirah}	^BT230	^Raytools
⁷	^{Precision linear guide rail}		^Hiwin
⁸	^Marble	^{18001350200}	^Shandong
⁹	^{Organ cover}	^Standar	^Raytools
¹⁰	^{Machining material}	^Standar	^Raytools	^{aviation aluminum-alloy}

Paramèter

^{Ukuran kerja}		^500×500(mm)
^{Max. Nyepetake}		^1.2g
^{X AXIS}	^{Max. Kacepetan pindah}	^{60m / mnt}
	^Rute	^500mm
	^{Posisi akurasi}	^{± 0,01mm}
	^{Akurasi baleni}	^±0.004mm
^{Y AXIS}	^{Max. Kacepetan pindah}	^{60m / mnt}
	^Rute	^500mm
	^{Posisi akurasi}	^{± 0,01mm}
	^{Akurasi baleni}	^±0.004mm
^{Z AXIS}	^Rute	^100mm

Kahanan kerja

¹	^{Suhu kerja}	^{-10 ℃ ～ 45 ℃}
²	^{Kelembapan Relativede}	^{＜ 90% ora kondensasi}
³	^Lingkungan	^{Ventilasi sing apik, ora getaran}
⁴	^{Pasokan tenaga}	^{3 × 380V ± 10% 220V ± 10%}
⁵	^{Frekuensi daya}	^50Hz

Sistem kontrol

The use of professional PC industrial computer operation, graphical interface, easy to operate, professional cutting control software can freely design a variety of graphics and text, real-time processing, support CAD, CorelDraw and other professional mapping software.
. High-quality industrial computer control operation
. High efficient, easy to operate CNC cutting system
. Z axis automatic tracking function

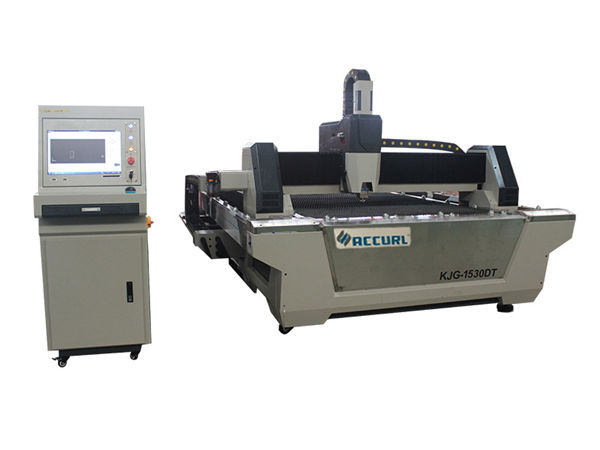

Mesin pemotong laser serat 60m / min presisi kanggo industri pariwara
