mesin nglereni serat laser serat 60m / min

Product Product

---

Sertifikasi: CE
Pembayaran & Kirim Katentuan:
Ukuran Dhuwit Minimal: 1Set
Rega: Rundingan
Rincian Kemasan: 1 * 20GP
Wektu Pangiriman: 30 Dina
Syarat Pembayaran: L / C, D / A, T / T, D / P, Western Union

Katrangan Product Detailed

---

Aplikasi ::	Kabeh Bahan Logam	Nglereni kekandelan:	SS Upto 12mm, MS Upto 22cm
Jenis Laser ::	Diimpor laser Serat Asli	Jeneng Produk:	Steel Fiber Laser Cutting Machine 60m/Min
Jembar Min.line:	0,1mm	Piranti Lunak ::	Cypcut
Format Grafis Didhukung ::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Jeneng merek::	TAIYI LASER
Baleni akurasi ::	+/- 0,03mm	Suhu Operasi ::	0 ° C-45 ° C
Mode Kelangan:	Kelangan banyu	Sumber Laser:	IPG / Lampu / Raycus / Max
Tegangan ::	AC380V ± 10% 50HZ (60HZ)	Wilayah Nglereni:	3000x1500mm,4000*2000mm Customized

Kauntungan saka mesin laser serat

---

1) Kualitas balok sing apik: Dhiameter fokus sing luwih cilik lan efisiensi kerja sing dhuwur, berkualitas tinggi.
2) Kacepetan nglereni dhuwur: Kacepetan nglereni luwih saka 60m / mnt
3) Stabil mlaku: Ngadopsi laser serat impor ndhuwur, kinerja stabil, bagean utama bisa
tekan 100.000 jam;
4) efisiensi konversi fotoelektrik: Bandhingake karo mesin pemotong laser CO2,
mesin nglereni serat serat kaping tiga efisiensi konversi fotoelektrik
5) Dhuwur biaya & Pangopènan sithik: Ngirit energi lan nglindhungi lingkungan. Tingkat konversi fotoelektrik
nganti 25-30%. Konsumsi listrik listrik sing murah, mung sekitar 20% -30% laser CO2 tradisional
mesin nglereni Transmisi garis serat ora kudu nggambarake lensa, ngirit biaya pangopènan;
6) Easy operation: fiber line transmission, no adjustment of optical path;
7) Efek optik super fleksibel: Desain kompak, gampang kanggo syarat produksi fleksibel.

Fitur & Properti

---

1.The machine enjoys a good performance with high cutting speed, high efficiency, safety and stability.
2.The laser spot enjoys good quality. And the machine distorts just slightly. Besides, the material can have a smooth and nice appearance.
3. After tempering treatment, the frame with high rigidity is of high vibration-absorbed performance. The frame with gantry structure is one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy which can be controlled within 0.01mm/m.
4. Imported servo motor, planetary reducer, and sophisticated direction drive mechanism ensure steadiness and accuracy.
5. Intuitive HMI with many practical functions is easy to operate.
6. Imported bevel gear, helical rack, linear guide rail ensure highly precise running direction.
7. Sistem otomatis dhuwur lan anti-tabrakan kanthi otomatis nyetel sirah pemotongan hermetik ing dhuwur sing cocog kanggo dipotong kanthi jarak sing tetep.
8. Pasokan daya mesin dirancang kanthi proteksi keamanan otomatis, lan nampilake weker kesalahan.

Spesifikasi

---

Medium sumber laser	Serat
Kisaran nglereni (L * W)	3000 mm × 15000 mm
Z garan stroke	250 mm
Max. kacepetan posisi	120 m / min
X, Y axle Max. nyepetake kacepetan	1.0G
Formulir pendinginan	Kelangan banyu
Gelombang laser	1070nm
Kekuwatan output sumber laser	500W / 1000W / 1500W / 2000W 2500W / 3000W / 4000W (Opsional)
Min. celah nglereni	≤ 0,1 mm
Posisi akurasi gandarwa X, Y lan Z	± 0,03 mm
Akurasi posisi kanthi asile X, Y lan Z	± 0,01 mm
Kekandelan saka nglereni materi (miturut materi)	0,2 - 25 mm
Model pembalap	Impor motor motor sing diimpor
Keperluan tenaga	380V, 50/60 Hz
Suhu kerja	0-45 ℃
Wektu kerja sing terus-terusan	24 Jam
Bobot mesin	Udakara 12000 Kgs
Tingkat pangayoman sumber daya total	IP54

Bahan ngethok

---

Laser serat bisa nglereni kabeh jinis logam non ferrous, kayata tembaga, aluminium, bahan reflektif dhuwur iki, lan tungsten, uga bisa ngethok baja tahan karat, baja karbon, baja mangan, lembar tergalvani, piring alloy platform aluminium, lan langka liyane logam.

Industri aplikasi

---

Mesin pemotong laser serat bisa digunakake kanthi umum ing aeroangkasa, penerbangan, elektronik, elevator, peralatan medis, alat-alat pawon, peralatan otomatis, peralatan listrik, lemari sasis bersalut emas, peralatan mekanik, hardware lampu, tandha-tandha pariwara, peralatan tampilan, kabeh jinis produk logam, pangolahan pemotong logam, lan industri liyane.

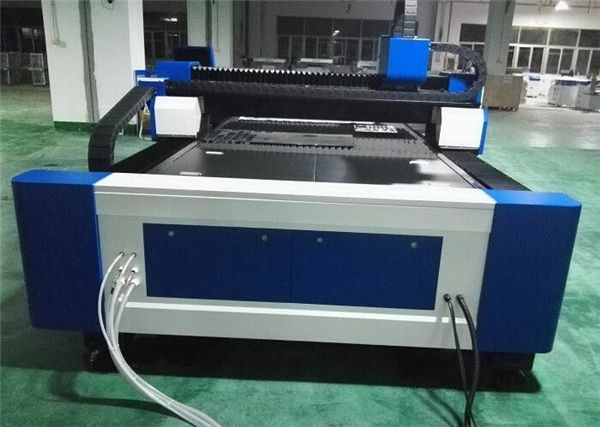

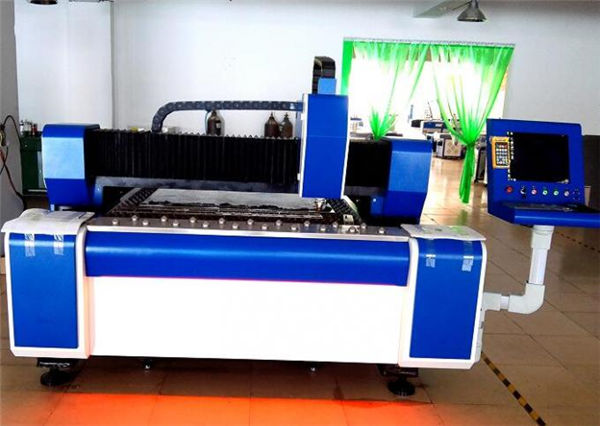

Gambar sing rinci

---



Nglereni Sampel

---

Latihan

---

Layanan sawise dodolan, saka latihan menyang instalasi mesin (3 cara):
1.Training video lan manual pangguna ing Inggris kanggo ditawani instalasi, operasi, pangopènan lan motret-masalah, lan pandhuan teknis bakal ditawakake nganggo e-mail, fax, telepon / whatsapp / skype // lan sapiturute, nalika sampeyan ketemu sawetara masalah instalasi, nggunakake utawa nyetel.
2. Sampeyan perusahaan bisa ngatur teknisi teka pabrik kanggo sinau kawruh dhasar babagan peralatan lan kabutuhan operasi, cukup latihan wektu kira-kira 3-5 dina, konten latihan kaya ing ngisor iki:
a) Latihan lunak piranti lunak gambar umum;
b) Mesin lan nglatih prosedur latihan;
c) Pentinge panel kontrol lan parameter piranti lunak, setelan kisaran
d) Pembersihan lan perawatan dhasar mesin;
e) Masalah Masalah Hardware Umum;
f) Ati-ati operasi.
3.Latihan pelatihan instruksi njero ruangan. visa, biaya lelungan lan akomodasi bakal entuk biaya. Luwih becik ngatur penerjemah kanggo loro insinyur sajrone periode pelatihan. Wektu pelatihan: 3-5days.

Waranti

---

a) .1Nelusuri kabeh mesin (Kerusakan buatan manungsa digawe rembugan.).
b) .Lembung sumber 2 Garansi taun
c) .Payangan pangopènan umume lan alat ganti
d) Latihan bebas kanggo staf operasi. (engineer bisa lunga ing luar negeri direncanakake.)
