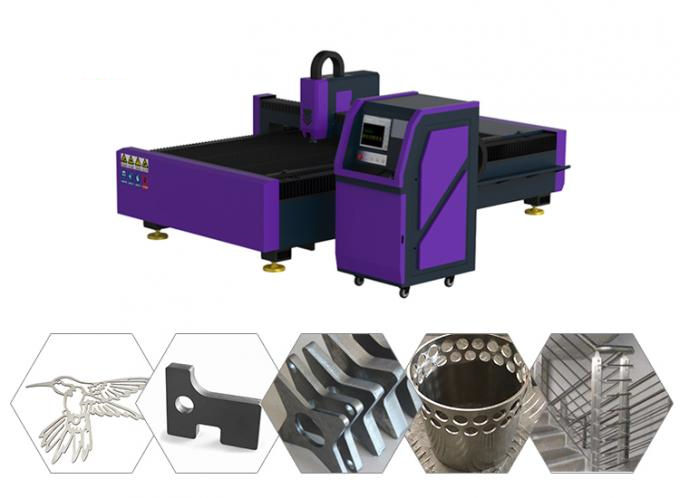

cnc metal cutting laser machine / fiber optic laser cutter

Product Product

Sertifikasi: CE / ISO / FDA / SGS / TUV
Pembayaran & Kirim Katentuan:
Ukuran Dhuwit Minimal: 1
Rega: Rundingan
Detail kemasan: Kasus kayu
Wektu Pangiriman: 15 kerja kerja
Sarat Pembayaran: T / T, L / C, Western Union
Kemampuan Penyetor: 2000 unit

Katrangan Product Detailed

Jeneng Produk:	Mesin Nglereni Serat laser	Jenis Laser:	Serat Laser
Daya Laser:	500-1000w	Area Makarya:	1500 * 3000mm
Gelombang Laser:	1070-1090nm	Daya Sumber:	380V / 50Hz
Waranti:	1 Taun	Nglereni Kepala:	Raytools

^{Konfigurasi utama lan kauntungan teknis}

^{1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours}

^{Fitur Utama}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Kacepetan nglereni kanthi cepet ngirit wektu kerja.
3. Ngirit energi lan perlindungan lingkungan;
4. Kualitas sinar cahya sing apik: facula fokus cilik, garis pemotongan sing alus, efisiensi kerja sing dhuwur, kualitas pangolahan sing paling apik.
5.Very biaya perawatan murah: transmisi serat optik, tanpa lensa refleksi; bisa ngirit akeh biaya perawatan;
6. Produk gampang operasi: ora perlu nyetel jalur optik;
7. Efek pandhuan lampu fleksibel: ukuran cilik, struktur kompak lan gampang kanggo nyukupi syarat manufaktur fleksibel.}

^{Parameter Teknis}

^{Product name}	^{Mesin Nglereni Serat laser}
^{Jenis Laser}	^{Serat Laser}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Nglereni Kepala}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Kacepetan max sing mlaku}	^600m/min
^{Posisi Akurasi}	^{0.0 ± 0,05mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Tabel Makarya}	^{Rack working platform}
^{Sistem Kontrol}	^{Sistem kontrol cypcut}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Nyepetake Max}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Transmisi	^{Precise pinion and rack,dual-drive transmitting}

Aplikasi Product

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Aplikasi

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
